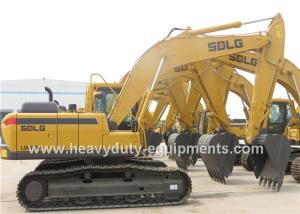

SDLG Excavator LG6235E with DDE Engine Standard Bucket 1 , 1m3 capacity
Specification:
| Engine |
DDE |
Working device |
Standard arm |
| Overall operating weight |
223000kg |
Bucket capacity |
1.1 m3 |
| Max. excavation force |
147.1KN |
Swing speed |
11.7r/min |
| Traveling speed |
3.6/5.5km/h |
Dimension |
9690*2990*3000mm |
| Max digging radius |
9940mm |
Max digging depth |
6730mm |
| Max digging height |
6650mm |
Engine rated power |
127kw |
| Length of boom |
5700mm |
Max climbing angle |
35° |
| Hydraulic system |
Pilot operation positive flow |
Cabin |
Standard cab
(with A/C)
|
Description:
LG6235E is an updated product developed by SDLG on the basis of advanced technology of VOLVO.
Advantages:
1. The charger inter-cooling engine for DEUTZ 2nd generation of electrically-controlled governor system EMR2 is equipped, with strong power, economic and environment protective property and high reliability; The filtration system is designed with three stage offiltrations such and pre-filtration and air filtration, which effectively improves and prolongs the performance and service life of engine.
2. Rexroth fUH-powerand positive-flow control hydraulic system is used, with little flow loss and low hydraulic noise; Advanced power control mode is used, with energy-saving and high-efficient properties.
3. Reinforced movable arm, bucket rod and bucket provide the entire machine with stronger ability to adapt to bad operating condition; Multiple working devices such as breaking hammer and rotator grab are optional.
4. The cab is spacious and bright and of wide visual field, good sealing effect, linkage suspended seat, dual-stage filtration and cold and warm air conditioner. Silicone oil rubber three-stage damper is also provided, with good damping effect, which ensures a comfortable driving environment.
Application:
This product has high-strength chassis, reinforced working device, perfectly-matched power and hydraulic system, suitable for use in many bad operating conditions.
