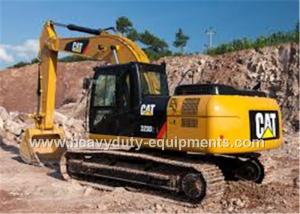

midsize excavator, CAT brand with 1.3m³ bucket capacity, 323D2L, 116KW net power

Product Categories

Shandong Sinomtp Construction Equipment Company Limited

Contact Now

Name: midsize excavator CAT brand with 13m bucket capacity 323D2L 116KW net power
Brand: SINOMTP
Price: 1 USD

Brand Name : SINOMTP

Model Number : CAT323D2L

Certification : ISO/CCC/CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 100 units/month

Delivery Time : 30 work days

Packaging Details : Nude

Model : CAT323D2L

Engine : Cat C7.1

Displacement : 7.01L

Min ground Clearance : 405mm

Track gauge : 2380mm

Travel hydraulic circuits : 35Mpa

Contact Now

midsize excavator, CAT brand with 1.3m³ bucket capacity, 323D2L, 116KW net power

Specification:

Model	323D2L	Engine	CAT C7.1
Displacement (L)	7.01	Emission	EU Stage II, and China Stage II Nonroad equivalent emission standards.
Engine power (kw)	118	Operating weight (kg)	30305.0
Min ground Clearance (mm)	450	Track gauge (mm)	2380
Travel hydraulic circuits (Mpa)	35	maximum tractive force (kN)	205
Grade ability (%)	70/35°	rotary torque (kN•m)	61.8
bucket arm length (mm)	2900	Boom length (mm)	5700
Bucket capacity (m³)	1.3	Max digging depth (mm)	6720
Max digging height (mm)	9490	Max digging radius (mm)	9860

Compared to 323D L D Series monitor, the new monitor on 323D2 L has a 40% larger screen, with a four times increased resolution display.

Advantages:

1.The ergonomically designed operator station is spacious, quiet, and comfortable, assuring high productivity during a long work day.

2.Monitor is equipped with warning lamp and buzzer for critical engine oil pressure, coolant temperature and oil temperature.

3.Information language capability increased from 28 to 42 languages to support today’s diverse workforce.

4.The mechanical or air suspension seats provide a variety of adjustments to accommodate a wide range of operators.

5.Low-effort pilot-operated joystick controls are designed to match your natural wrist and arm position for maximum comfort and minimum fatigue.

Application:

CAT excavator with mature technology, good using in road constructions.

midsize excavator, CAT brand with 1.3m³ bucket capacity, 323D2L, 116KW net power
