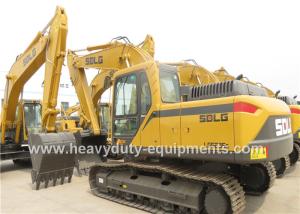

SDLG Excavator LG6235E with DDE Engine Standard operation weight 22300 KG
Specification:
| Engine | DDE | Working device | Standard arm |
| Overall operating weight | 223000kg | Bucket capacity | 1.1 |
| Max. excavation force | 147.1KN | Swing speed | 11.7r/min |
| Traveling speed | 3.6/5.5km/h | Dimension | 9690*2990*3000mm |
| Max digging radius | 9940mm | Max digging depth | 6730mm |
| Max digging height | 6650mm | Engine rated power | 127kw |
| Length of boom | 5700mm | Max climbing angle | 35° |
| Hydraulic system | Pilot operation positive flow | Cabin | Standard cab (with A/C) |
Description:
LG6235E is an updated product developed by SDLG on the basis of advanced technology of VOLVO.
Advantages:
1. The charger inter-cooling engine for DEUTZ 2nd generation of electrically-controlled governor system EMR2 is equipped, with strong power, economic and environment protective property and high reliability; The filtration system is designed with three stage offiltrations such and pre-filtration and air filtration, which effectively improves and prolongs the performance and service life of engine.
2. Rexroth fUH-powerand positive-flow control hydraulic system is used, with little flow loss and low hydraulic noise; Advanced power control mode is used, with energy-saving and high-efficient properties.
3. EECU, VECU and IECU electric control systems with special technology of SDLG are used and is energy-saving and high-efficient, which provides the entire machine with multiple working modes to adapt to different working condition; Colored LCD is provided, with functions such as self inspection, monitoring, emergency fault alarm, GPS location and remote monitoring, and also has high human-machine interaction and is convenient for operation and maintenance.
4. X-shape lower frame and reinforced upper frame for broadening chassis are used, which ensures the entire machine with higher stability and easy to adapt to various working conditions.
Application:
This product has high-strength chassis, reinforced working device, perfectly-matched power and hydraulic system, suitable for use in many bad operating conditions.
