LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity

Product Categories
Shandong Sinomtp Construction Equipment Company Limited
Contact Now

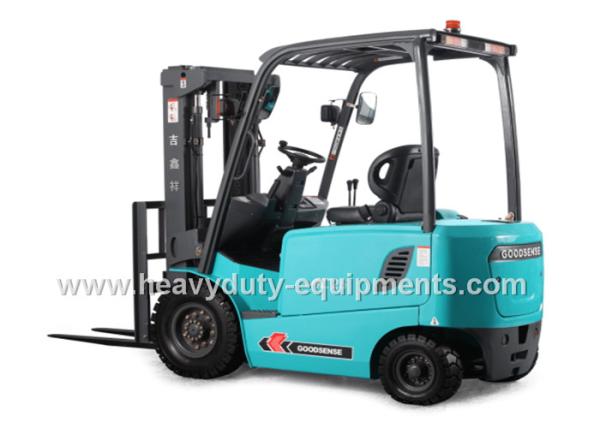

LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity

  • 1
  • 2

Brand Name : SINOMTP

Model Number : SINOMTP-FB25

Certification : ISO/CCC/BV/CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 500 units per month

Delivery Time : 25 working days after received payment

Packaging Details : Nude, but with wax sprayed.

Model : SINOMTP-FB25

Power source : Battery

Rated load capacity : 2500kg

Load centre : 500mm

Fork carriage tilt(F/R) : 6°/12°

Gradeability(Laden) : 15%

Contact Now

LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity

Specification:

Product model SINOMTP-FB25 Overhead Guard Height(mm) 2240
Power source Battery Wheelbase(mm) 1510
Rated load capacity(kg) 2500 Overall length(with forks)(mm) 3430
Load centre(mm) 500 Gradeability(Laden)(%) 15
Lift height(mm) 3000 Front Tire 7.00-12-12PR
Fork size (L×W×T)(mm) 1070x120x40 Rear Tire 18x7-8-14PR
Overall Length(Length to fork face)(mm) 2360 Backrest height(from upper fork face)(mm) 994
Overall Width(mm) 1090 Free lift(mm) 125
Mast Lowered Height(mm) 1160 Drive motor(kw) 11.1/8
Mast Extended Height(mm) 4020 Lift motor(kw) 12/15
Fork carriage tilt(F/R)( °) 6°/12°

Description:

Our production range for internal-combustion counter-balance forklift trucks is from 1T-33T. Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard soft pipes which greatly reduced the pipeline pressure.

Application:

Currently our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.

Advantage:

1. High-strength overhead guard

2. Super low non-slip pedal

3. Waterproof, dustproof and shockproof of LCD instrument

4. Motor: side-mounted pump motor makes easier maintenance
