Sinomtp FY60 Gasoline / LPG forklift with 4380mm Mast Extended Height

Product Categories
Shandong Sinomtp Construction Equipment Company Limited
Contact Now

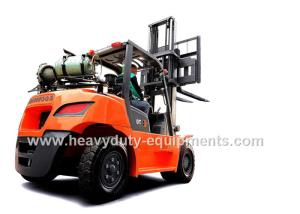

Sinomtp FY60 Gasoline / LPG forklift with 4380mm Mast Extended Height

  • 1
  • 2

Brand Name : SINOMTP

Model Number : SINOMTP-FY60

Certification : ISO/CCC/BV/CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 500 units per month

Delivery Time : 25 working days after received payment

Packaging Details : Nude, but with wax sprayed.

Model : SINOMTP-FY60

Power source : Gasoline/LPG

Rated load capacity : 6000kg

Operating pressure for attachment : 19Mpa

Service Weight : 8550kg

Wheelbase : 2250mm

Contact Now

Sinomtp FY60 Gasoline / LPG forklift with 4380mm Mast Extended Height

Specification:

General 1 Model Unit FY60
2 Power type LPG
3 Rated Capacity kg 6000
4 Load center mm 600
Characteristic&Dimension 5 Lift Height mm 3000
6 Fork Size L×W×T mm 1220×150×60
7 Mast title Angle F/R Deg 6°/12°
8 Front Overhang (Wheel center to fork face) mm 590
9 Ground clearance (Bottom of mast) mm 200
10 Overall Dimension Length to face of fork (without fork) mm 3450
11 Overall width mm 2010
12 Mast Lowered Height mm 2550
13 Mast Extended Height (with backrest) mm 4380
14 Overhead Guard Height mm 2470
15 Turning Radius (outside) mm 3250
16 Min. intersecting aisle mm 2960
Performance 17 Speed Travel(no load) km/h 30
18 Lifting(full load) mm/s 500
19 Max Gradeability % 20
Chassis 20 Tire Front 8.25-15-14 PR
21 Rear 8.25-15-14 PR
22 Wheelbase mm 2250
23 Service Weight kg 8550
Power&Transmission 24 Battery Voltage/Capacity V/Ah (12V/80AH) × 2
32 Fuel Tank Capacity L 140
33 Transmission Type Hydraulic
34 Stage FWD/RVS 2/2
35 Operating pressure for attachment Mpa 19

Description:

Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.

Advantage:

1. Specially designed solid overhead guard provides additional security for the operator.

2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.

3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.

Supper low and non-slip make operating convenient and safe.

Sinomtp FY60 Gasoline / LPG forklift with 4380mm Mast Extended HeightSinomtp FY60 Gasoline / LPG forklift with 4380mm Mast Extended Height
